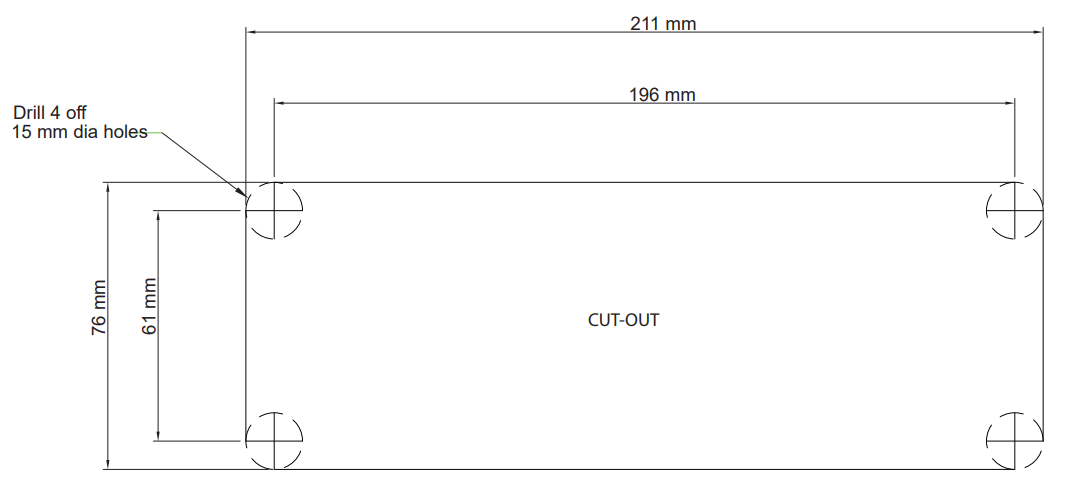

For panel mounting the X100, the radio requires an aperture of 211 mm wide by 76 mm high. Detail as below:
Click the attached file to download the panel mount template. Print 1:1 on A3.
