Charging the I100X

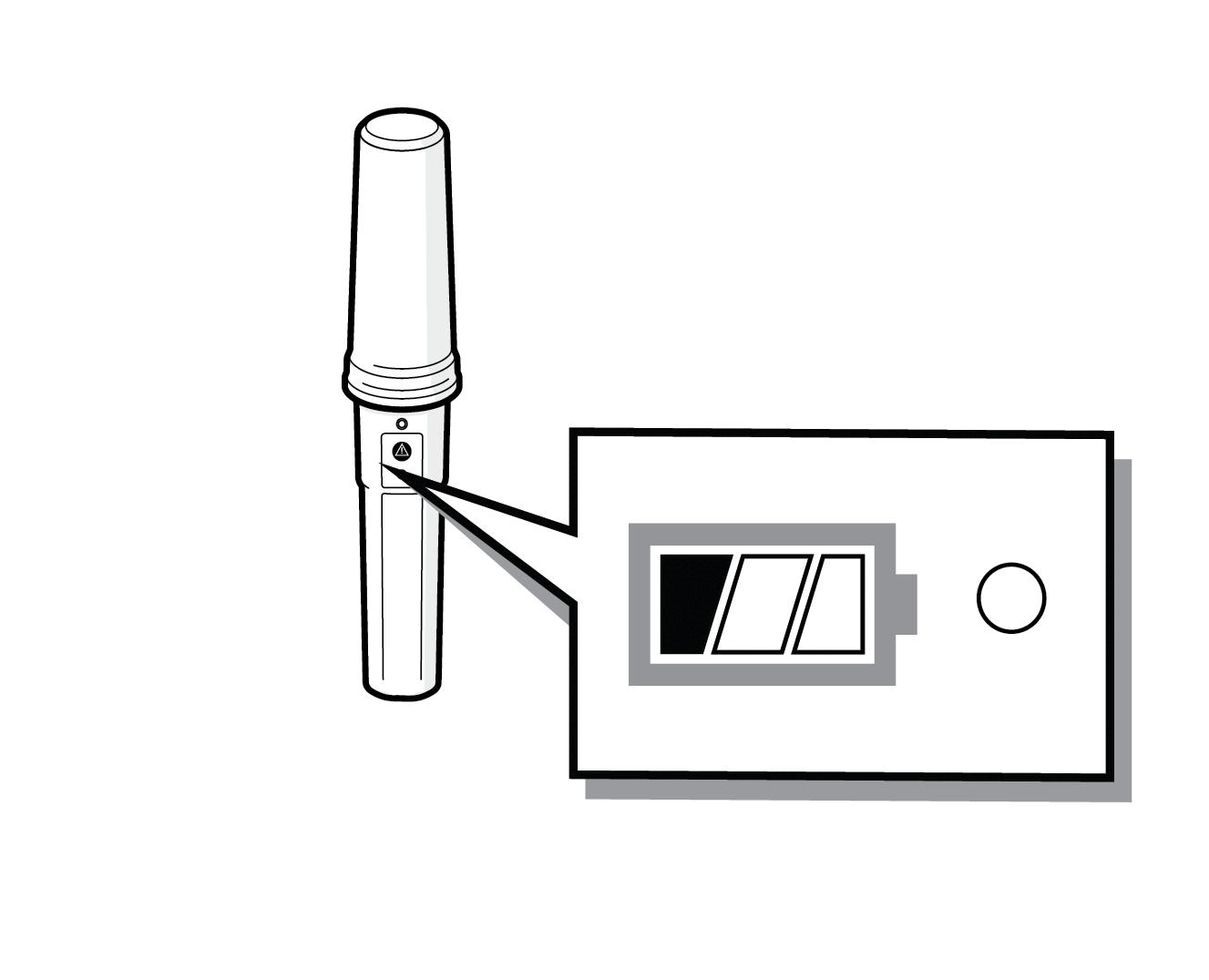

The I100X comes with a partial charge. If it will be used without a connection to vessel power, ensure it is fully charged before installation on the vessel. You can charge the I100X by placing it into the charging dock as shown in Figure 4.
While charging, you'll notice the status I100X flashing green at a steady pace. Once the battery is fully charged, the I100X will switch to a solid green light. Depending on the battery's condition, it may take up to 3 hours to reach a full charge.
| INFORMATION | |
| The I100X can be configured as described in see Configuration on page 1 prior to charging. |
| INFORMATION | |
| The I100X will not charge if the internal temperature is below 0°C or above 40°C. If the temperature is outside this range the status indicator will be continuously illuminated red to indicate a charging fault. |
