Status indicator
When the I100X is securely in the bracket and active, the status indicator will flash every 5 seconds. The number of flashes and the LED colour indicate different statuses, which are explained in the table below.

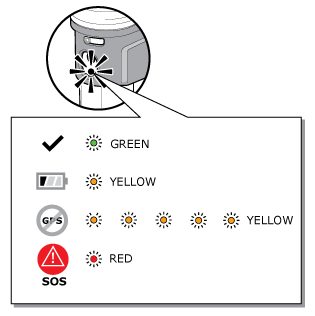

The status indicator shows the current operating state of the I100X. The status indicator flashes every 5 seconds. The number of flashes and colour indicates the status conditions defined in the table below. The key status indications are also shown below.
| Indication | Colour | Flashes count |
| SOS alert | RED | 1 |
| Charge fault | RED | 0 (Solid) |
| Geofence alert | BLUE | 1 |
| Low battery | YELLOW | 1 |
| Bracket mismatch | YELLOW | 4 |
| No position | YELLOW | 5 |
| TX error | YELLOW | 6 |
| No MMSI | YELLOW | 7 |
| Operating normally in bracket | GREEN | 1 |
| Charging | GREEN | Continuous flashing |
| Charge complete | GREEN | 0 (Solid) |
While charging
The status indicator flashes green while charging. Once charging is complete, it will stay solid green. If there’s a charging error, the indicator will turn solid red—this is usually caused by high temperatures. For safety, the charger won’t operate above 40°C.
The status indicator flashes green. When charging is complete the status indicator will remain continuously illuminated green. A charging error is indicated by the status indicator continuously illuminated red. The most likely cause of a charging error is high temperature. The charger will not operate above 40°C for safety reasons.
