Status indicator
While active in the vessel bracket

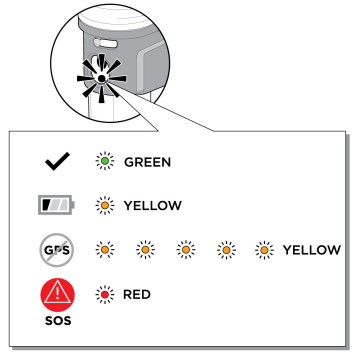

The status indicator shows the current operating state of the Identifier. The status indicator flashes every 5 seconds. The number of flashes and colour indicates the status conditions defined in the table below. The key status indications are also shown in Figure 12.
While charging
The status indicator flashes green while charging. Once charging is complete, it will stay solid green. If there’s a charging error, the indicator will turn solid red—this is usually caused by high temperatures. For safety, the charger won’t operate above 40°C.
| Indication | Colour | Flashes count |
|---|---|---|
| SOS alert | RED | 1 |
| Charge fault | RED | 0 (Solid) |
| Geofence alert | BLUE | 1 |
| Low battery | YELLOW | 1 |
| Bracket mismatch | YELLOW | 4 |
| No position | YELLOW | 5 |
| TX error | YELLOW | 6 |
| No MMSI | YELLOW | 7 |
| Operating normally in bracket | GREEN | 1 |
| Charging | GREEN | Continuous flashing |
| Charge complete | GREEN | 0 (Solid) |
