Activating and deactivating the Identifier
To activate the identifier, simply place it into the bracket, and to deactivate remove it from the bracket.
If you insert the Identifier into a bracket it is not paired to, it will continue to report position and vessel data but will also send a bracket security alert. To fix this, install the identifier into the correct paired bracket.
| INFORMATION | |
| The identifier pairs with the first bracket it is inserted into. |
| CAUTION | |
| Ensure power cable or waterproof cap is fitted at all times when the transceiver is deployed. |

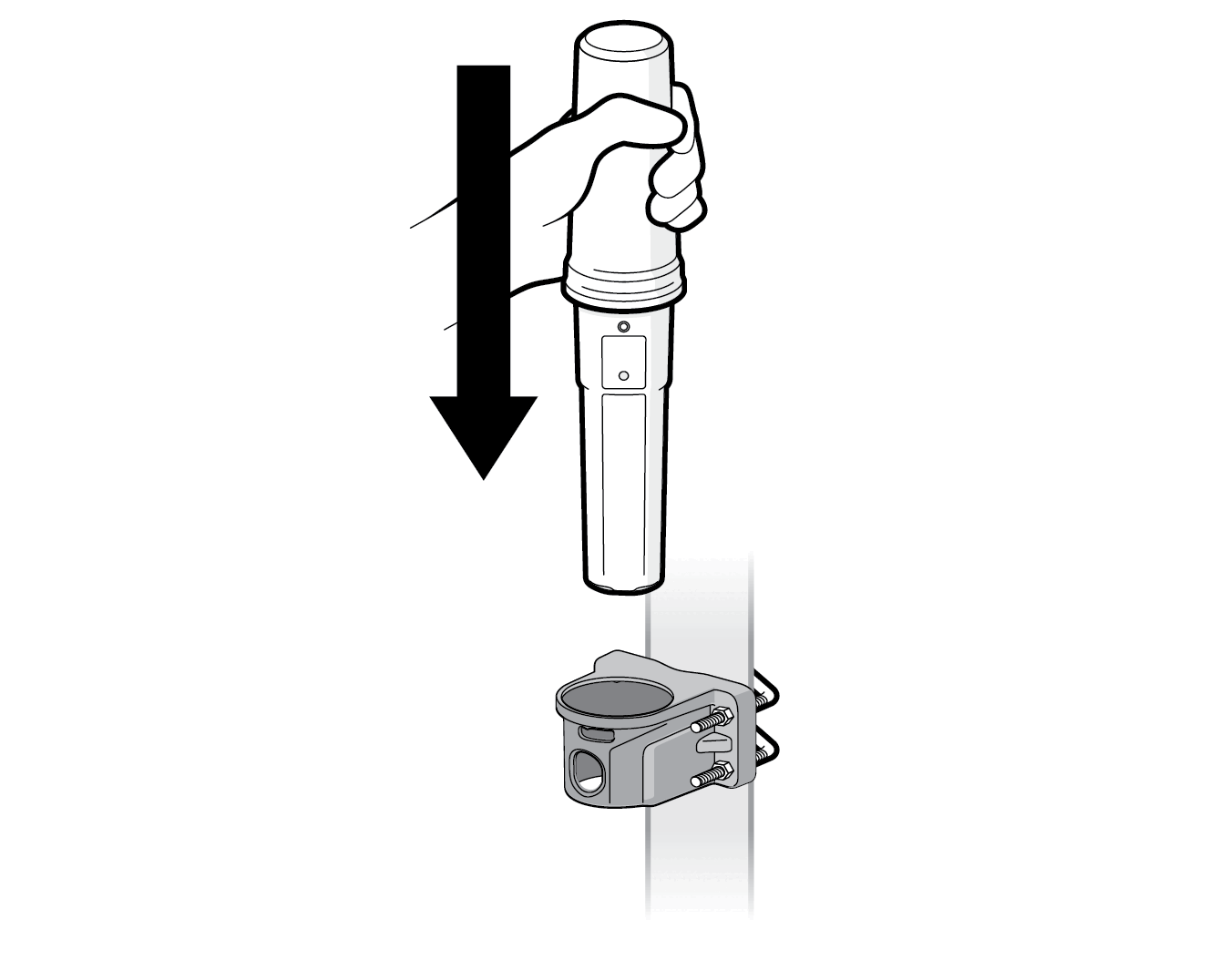

Figure 15 : Activating the Identifier
The Identifier is designed to fit into the bracket in only one direction. Forcing it in the wrong way could damage the Identifier.
| INFORMATION | |
| The Identifier will transmit vessel position every 5 minutes once activated. |
